SOFTISH · Shenzhen Jiding Electronic

SOFTISH Y Series Visual Ear Cleaners

The SOFTISH Y Series (Y10, Y11, Y12, Y13, YY10, Y8) is a range of pen-style, Wi-Fi app visual ear cleaners with a 3.9 mm 0.3MP HD endoscope camera, made by Shenzhen Jiding Electronic Co., Ltd. in Shenzhen, China. Every model is available for OEM/ODM with your logo, color and packaging (MOQ 500 pcs neutral, 1,000 pcs custom).

SOFTISH Y10 visual ear cleaner with HD camera — Y10

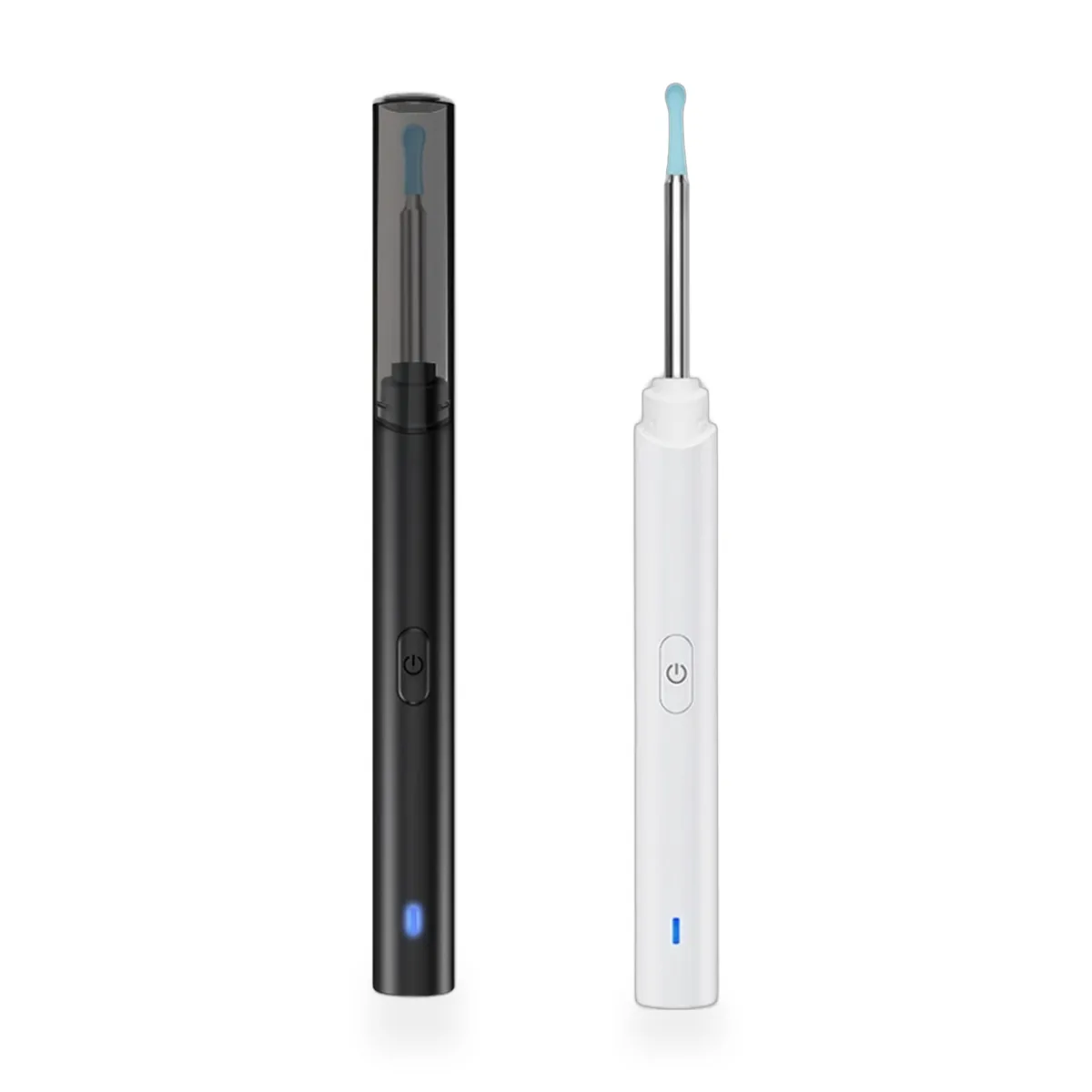

SOFTISH Y11 visual ear cleaner with HD camera — Y11

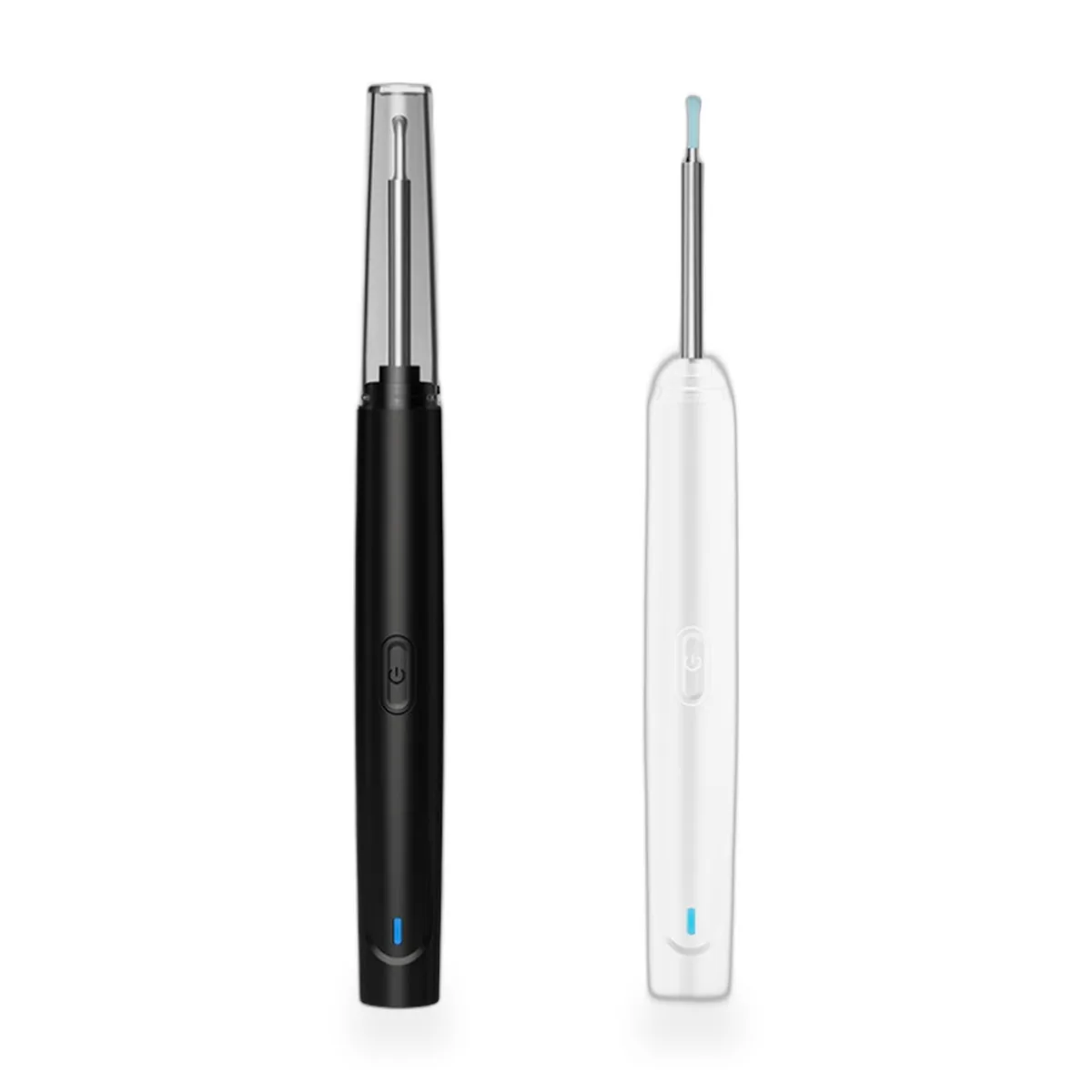

SOFTISH Y12 visual ear cleaner with HD camera — Y12

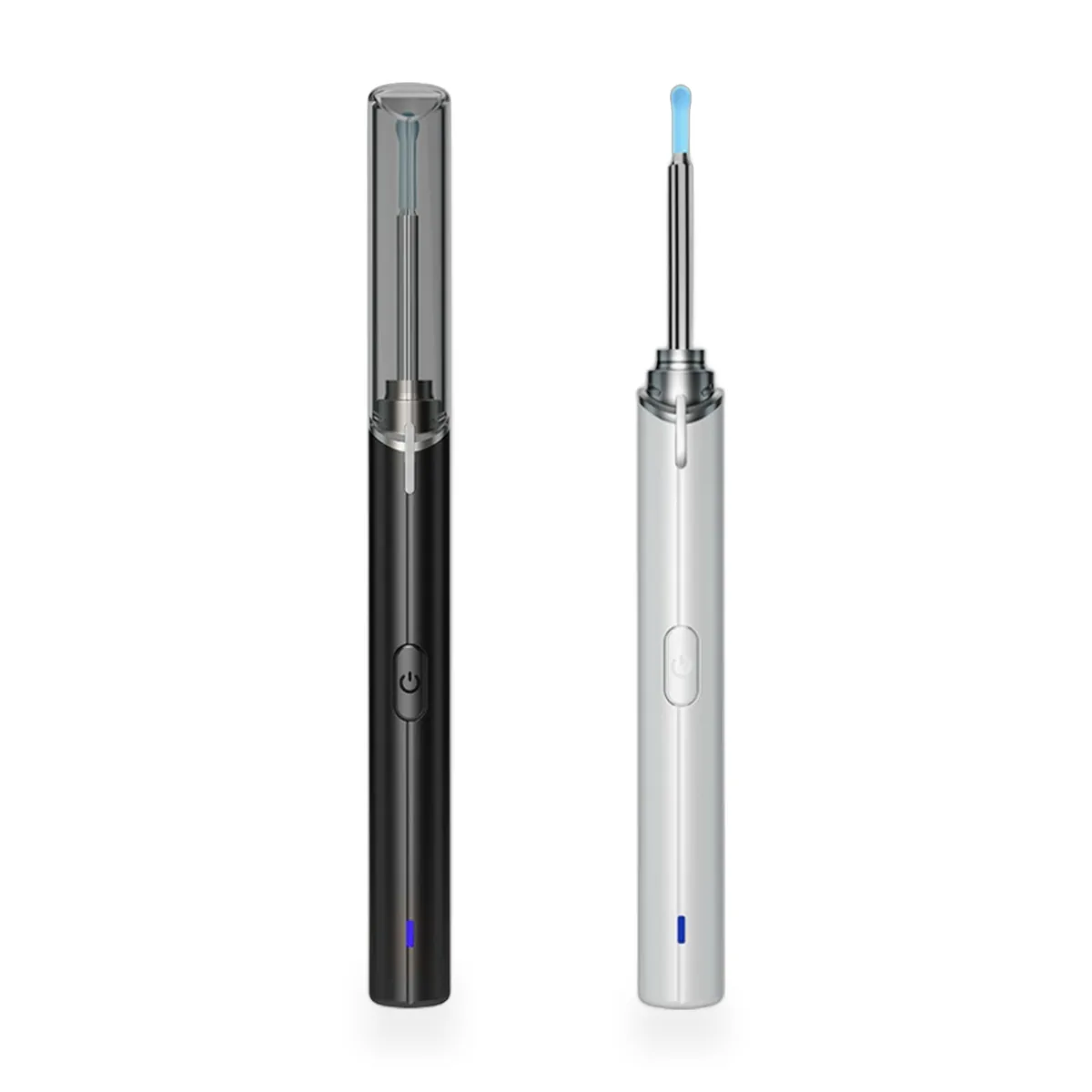

SOFTISH Y13 visual ear cleaner with HD camera — Y13

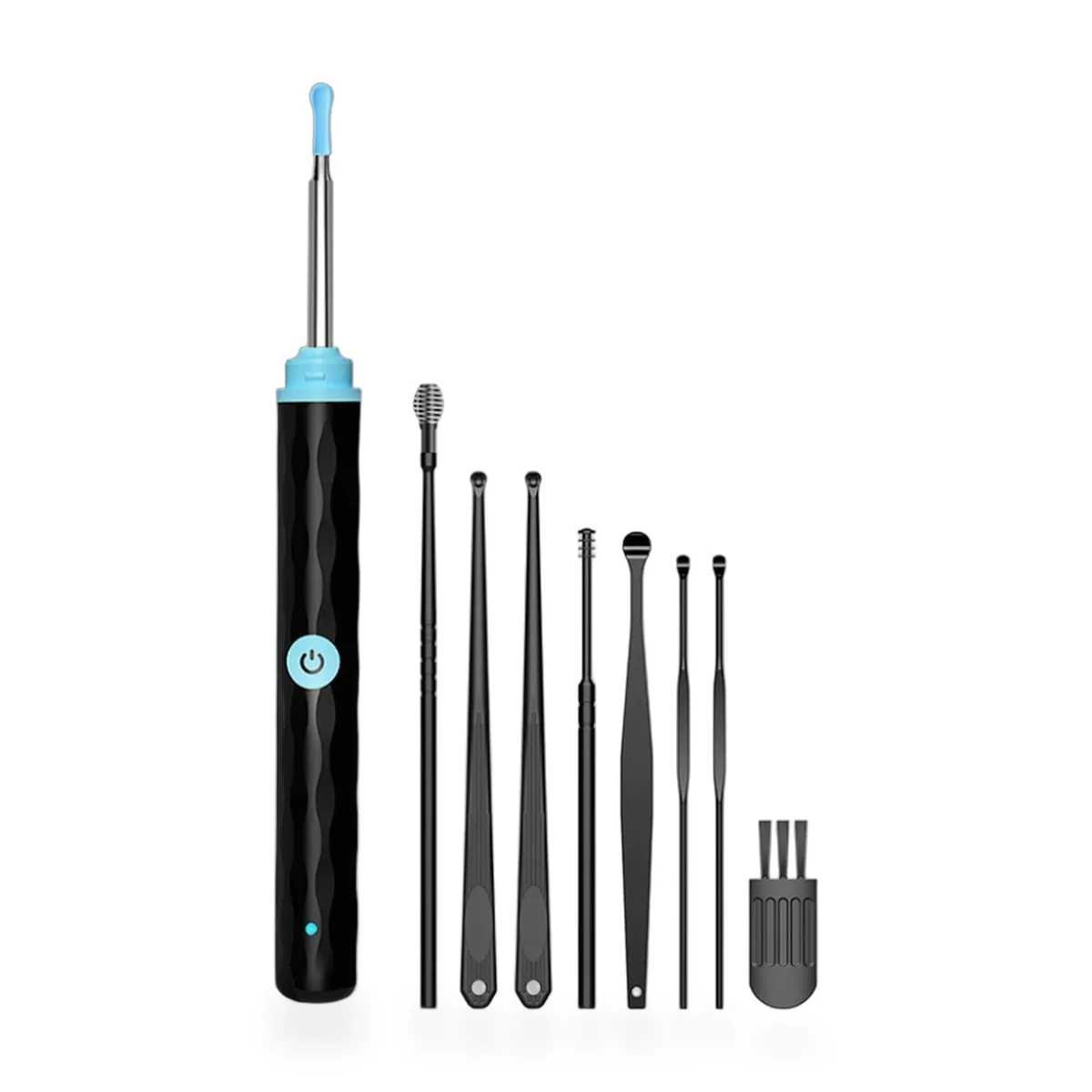

SOFTISH YY10 visual ear cleaner with HD camera — YY10

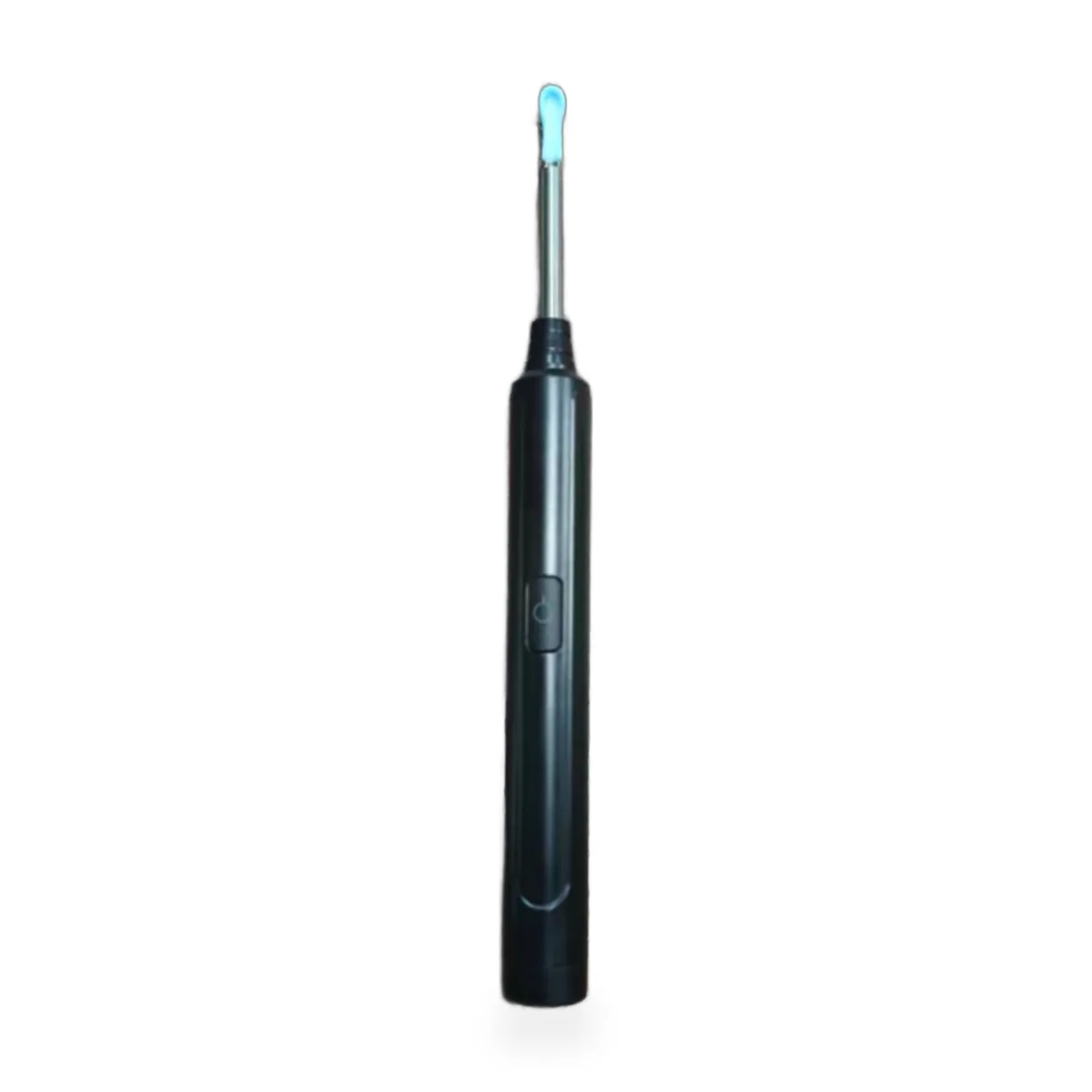

SOFTISH Y8 visual ear cleaner with HD camera — Y8

Y Series specifications

Spec	Y10	Y11	Y12	Y13	YY10	Y8
Product size	144 × Ø13 mm	140 × Ø13 mm	140 × Ø13 mm	140 × Ø13 mm	144 × Ø13 mm	140 × Ø13 mm
Net weight	15g; 16g	15g; 16g	15g; 16g	15g; 16g	15g; 16g	15g
Colors	Black; Pearl white	Black; Pearl white	Black; Pearl white	Black; Pearl white	Black; Pearl white	Black; Pearl white
Housing material	Plastic	Plastic	Plastic	Plastic	Plastic	Plastic
Endoscope camera	3.9 mm 0.3MP HD endoscope camera	3.9 mm 0.3MP HD endoscope camera	3.9 mm 0.3MP HD endoscope camera	3.9 mm 0.3MP HD endoscope camera	3.9 mm 0.3MP HD endoscope camera	3.9 mm 0.3MP HD endoscope camera
Battery capacity	130mAh; 230mAh	130mAh; 230mAh	130mAh; 230mAh	130mAh; 230mAh	130mAh; 230mAh	130 mAh
Working time	90 min; 110 min	90 min; 110 min	90 min; 110 min	90 min; 110 min	90 min; 110 min	90 min
Charging port	Type-C	Type-C	Type-C	Type-C	Type-C	Type-C
Included accessories	5 soft silicone ear tips	5 soft silicone ear tips	5 soft silicone ear tips	5 soft silicone ear tips	5 soft silicone ear tips	5 soft silicone ear tips
Ear spoon tip	Integrated stainless-steel ear spoon	Integrated stainless-steel ear spoon	Integrated stainless-steel ear spoon	Integrated stainless-steel ear spoon	Integrated stainless-steel ear spoon	Integrated stainless-steel ear spoon
Orientation sensor	3-axis smart gyroscope	3-axis smart gyroscope	3-axis smart gyroscope	3-axis smart gyroscope	3-axis smart gyroscope	4-axis smart gyroscope
Temperature control	Hardware, +, software temperature control	Hardware, +, software temperature control	Hardware, +, software temperature control	Hardware, +, software temperature control	Hardware, +, software temperature control	Hardware, +, software temperature control
Connection	Wi-Fi (high-performance chip)	Wi-Fi (high-performance chip)	Wi-Fi (high-performance chip)	Wi-Fi (high-performance chip)	Wi-Fi (high-performance chip)	Wi-Fi (high-performance chip)
Switch	Mechanical button	Mechanical button	Mechanical button	Mechanical button	Mechanical button	Mechanical button
Retail packaging	Standard color box	Standard color box	Standard color box	Standard color box	Standard color box	Standard color box
Key features	One-tap app connection AI eardrum recognition & warning Long battery life, long standby Soft silicone ear tips	One-tap app connection AI eardrum recognition & warning Long battery life, long standby Soft silicone ear tips	One-tap app connection AI eardrum recognition & warning Long battery life, long standby Soft silicone ear tips	One-tap app connection AI eardrum recognition & warning Long battery life, long standby Soft silicone ear tips	One-tap app connection AI eardrum recognition & warning Long battery life, long standby Soft silicone ear tips	One-tap app connection AI eardrum recognition & warning Long battery life, long standby Soft silicone ear tips
Tip temperature	approx. 28 °C, body-safe	approx. 28 °C, body-safe	approx. 28 °C, body-safe	approx. 28 °C, body-safe	approx. 28 °C, body-safe	approx. 28 °C, body-safe
Compatible devices	Android, iOS, tablets	Android, iOS, tablets	Android, iOS, tablets	Android, iOS, tablets	Android, iOS, tablets	Android, iOS, tablets
Waterproof rating	IP67	IP67	IP67	IP67	IP67	IP67
Lead time	Typically 7–15 days, depending on product and quantity	Typically 7–15 days, depending on product and quantity	Typically 7–15 days, depending on product and quantity	Typically 7–15 days, depending on product and quantity	Typically 7–15 days, depending on product and quantity	Typically 7–15 days, depending on product and quantity
MOQ	500 pcs neutral packaging, 1,000 pcs custom branding; small-batch orders available for selected models	500 pcs neutral packaging, 1,000 pcs custom branding; small-batch orders available for selected models	500 pcs neutral packaging, 1,000 pcs custom branding; small-batch orders available for selected models	500 pcs neutral packaging, 1,000 pcs custom branding; small-batch orders available for selected models	500 pcs neutral packaging, 1,000 pcs custom branding; small-batch orders available for selected models	500 pcs neutral packaging, 1,000 pcs custom branding; small-batch orders available for selected models
Color box size	68 × 18 × 164mm	68 × 18 × 164mm	68 × 18 × 164mm	68 × 18 × 164mm	68 × 18 × 164mm	68 × 18 × 164mm
Gross weight per box	55 g	55 g	55 g	55 g	55 g	55 g
Gross weight per carton	11.65 KG	11.65 KG	11.65 KG	11.65 KG	11.65 KG	11.65 KG
Qty per carton	200 PCS	200 PCS	200 PCS	200 PCS	200 PCS	200 PCS
Carton size (mm)	395 × 345 × 360	395 × 345 × 360	395 × 345 × 360	395 × 345 × 360	395 × 345 × 360	395 × 345 × 360
Certifications	CE, FCC ID, RoHS, FDA reg., UKCA, PSE, MIC, CPC, EU MDR, EU Battery Reg. 2023/1542, UN38.3 / MSDS docs	CE, FCC ID, RoHS, FDA reg., UKCA, PSE, MIC, CPC, EU MDR, EU Battery Reg. 2023/1542, UN38.3 / MSDS docs	CE, FCC ID, RoHS, FDA reg., UKCA, PSE, MIC, CPC, EU MDR, EU Battery Reg. 2023/1542, UN38.3 / MSDS docs	CE, FCC ID, RoHS, FDA reg., UKCA, PSE, MIC, CPC, EU MDR, EU Battery Reg. 2023/1542, UN38.3 / MSDS docs	CE, FCC ID, RoHS, FDA reg., UKCA, PSE, MIC, CPC, EU MDR, EU Battery Reg. 2023/1542, UN38.3 / MSDS docs	CE, FCC ID, RoHS, FDA reg., UKCA, PSE, MIC, CPC, EU MDR, EU Battery Reg. 2023/1542, UN38.3 / MSDS docs
OEM / ODM options	Logo, color, packaging, accessories	Logo, color, packaging, accessories	Logo, color, packaging, accessories	Logo, color, packaging, accessories	Logo, color, packaging, accessories	Logo, color, packaging, accessories

Export packaging options

Model	Packing	Unit weight (g)	Packed weight (g)	Color box (mm)	Carton (mm)	Pcs / carton	Carton G.W. (kg)
Y8	Neutral (old)	13	55	1646822	360350255	100	6.15
Y8	Neutral (old)	13	55	1646822	465350365	200	11.98
Y8	Neutral (new)	13	55	1646818	395345360	200	11.85
Y8	Custom	13	55	1646818	465350435	240	14.2
Y8	Flat tool box	13	106	16410418	545342210	100	11.8
Y8	Round tool box	13	98	16410418	545342210	100	11.3
Y11	Neutral	15	55	1646818	395345360	200	11.65
Y11	5-piece set / tool bag	15	82	1646818	395345360	200	17.25
Y11	Flat tool box	15	108	16410418	545342210	100	12
Y13	Neutral	16	55	1646818	395345360	200	11.65
Y13	Flat tool box	15	108	16410418	545342210	100	12
Y12	Neutral	15	55	1646818	395345360	200	11.65
Y12	Flat tool box	15	108	16410418	545342210	100	12
Y10	Neutral	16	55	1646818	395345360	200	11.65
Y10	Flat tool box	15	108	16410418	545342210	100	12
YY10	Neutral	16	55	1646818	395345360	200	11.65
YY10	Flat tool box	15	108	16410418	545342210	100	12

Request a quote WhatsApp

Buyer FAQ

What is the MOQ for the Y Series?

MOQ: 500 pcs neutral packaging, 1,000 pcs custom branding; small-batch orders available for selected models.

Can I customize the Y Series with my brand?

Yes. We offer logo printing, custom colors, color box design and accessory combinations. Our in-house R&D team also handles ODM changes.

What certifications do these ear cleaners have?

Our visual ear cleaners are CE, FCC, RoHS, UKCA, PSE, MIC, CPC and EU MDR compliant, FDA registered, with an EU Battery Regulation (EU) 2023/1542 report, and UN38.3 and MSDS battery safety documents available. See the certifications page.

Which phones are supported?

They connect over Wi-Fi to an app on Android and iOS phones and tablets.

Which camera do they use?

All models use a 3.9 mm 0.3MP HD endoscope camera with an integrated stainless-steel ear spoon tip.

What is the lead time?

7 to 15 days after order confirmation, depending on quantity and customization.

How are they packed for export?

Each unit comes in a color box; color box size, carton size, quantity per carton and gross weight are listed in the tables on this page.
